Kit ORing e viti di ricambio Reb Liberty CCR

79,00

Set completo di oring e viti per Rebreather DiveSoft Liberty CCR

Disponibile

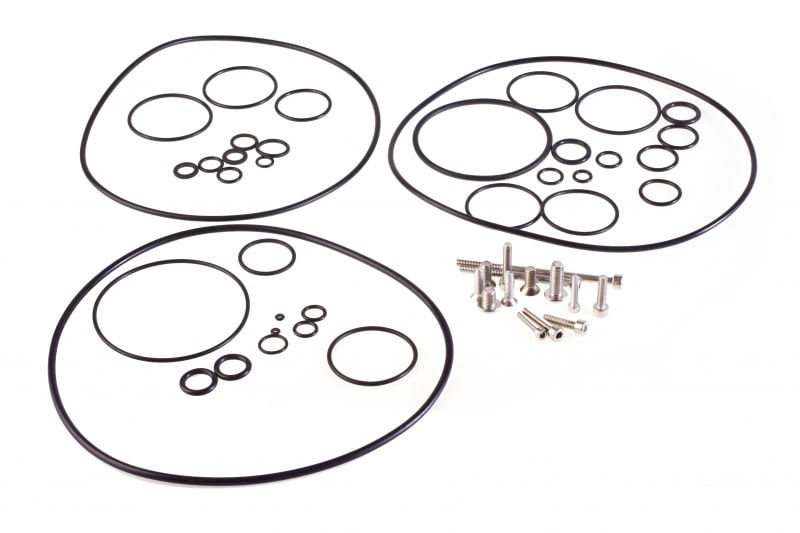

Kit completo di Oring e Viti per Rebreather Divesoft Liberty CCR

Codice originale DiveSoft:ย

Il set di ricambio comprende:

1x O-ring 34 x 2 (NBR) – Block of O2 cells, around electric connector

1x O-ring 38 x 2 (NBR) – DSV – one way valve basket

1x O-ring 60 x 3 (NBR) – Bayonet socket

1x O-ring 22 x 2 (NBR) – Connector HUD and BD

1x O-ring 160 x 3 (NBR) – Between the head and canister

1x O-ring 10 x 1.50 (NBR) – Inflator connector

2x O-ring 7.65 x 1.78 (NBR) – Intermediate pressure hose (1st stage 3/8-24 port)

1x O-ring 6.08 x 1.78 (NBR) – Intermediate pressure hose (2nd stage 9/16-18 connector)

2x O-ring 10.77 x 2.62 (NBR) – Diluent tank connector “DIN” G 5/8

3x O-ring 16 x 2 (NBR) – ADV shut-off valve

1x O-ring 24 x 2 (NBR) – Connector handset

1x O-ring 65 x 2 (NBR) – Block of O2 cells, cover

1x O-ring 12.50 x 2 (NBR) – Bottom of battery pack

1x O-ring 142 x 3 (NBR) – Water trap cover (canister)

2x O-ring 8.74 x 1.78 (NBR) – High pressure hose (1st stage 7/16-20 port)

2x O-ring 1.42 x 1.52 (NBR) – High pressure hose, manometer connector

3xย  O-ring 32 x 2 (NBR) – Bayonet

1x O-ring 33 x 2 (NBR) – Block of O2 cells, top

2x O-ring 9.25 x 1.78 (NBR) – Manual add valve, piston

2x O-ring 13.90 x 2.60 (FPM) – Oxygen tank connector M26x2

1x O-ring 37 x 2 (NBR) – Block of O2 cells, bottom

2x O-ring 7.60 x 2.30 (FPM) – Oxygen connector (swivel) on head

1x O-ring 160 x 3.5 (NBR) – Between the head and canister – damage repair

1x O-ring 6 x 1.50 (NBR) – Connector battery pack to bleed valve

1x O-ring 10 x 1.80 (FPM) – Oxygen connector (swivel) on head

2x O-Ring 68 x 2 (NBR) – Block of O2 cells, rear cover

2x O-Ring 6 x 1 (NBR) – Helium sensor, air connector

2x O-Ring 54 x 2 (NBR) – Block of O2 cells, cell holder pad

2x O-Ring 26 x 2 (NBR) – Diluent manual add valve, swivel

2x Screw M4 x 20, socket head, stainless

2x Screw M3 x 16, socket head, stainless

1x Screw M4 x 50, socket head, stainless

1x Screw M4 x 70, socket head, stainless

2x Screw M4 x 16, socket head, stainless

2x Screw M5 x 12, flat head Phillips, stainless

2x Screw M4 x 16, flat head Phillips, stainless

1x Screw M6 x 8, round head T30 stainless

1x Screw M6 x 16, round head T30 stainless
